Autos and Rickshaws are at the heart of the daily Indian commute alongside personal vehicles and other public transport methods cabs, buses and metros.

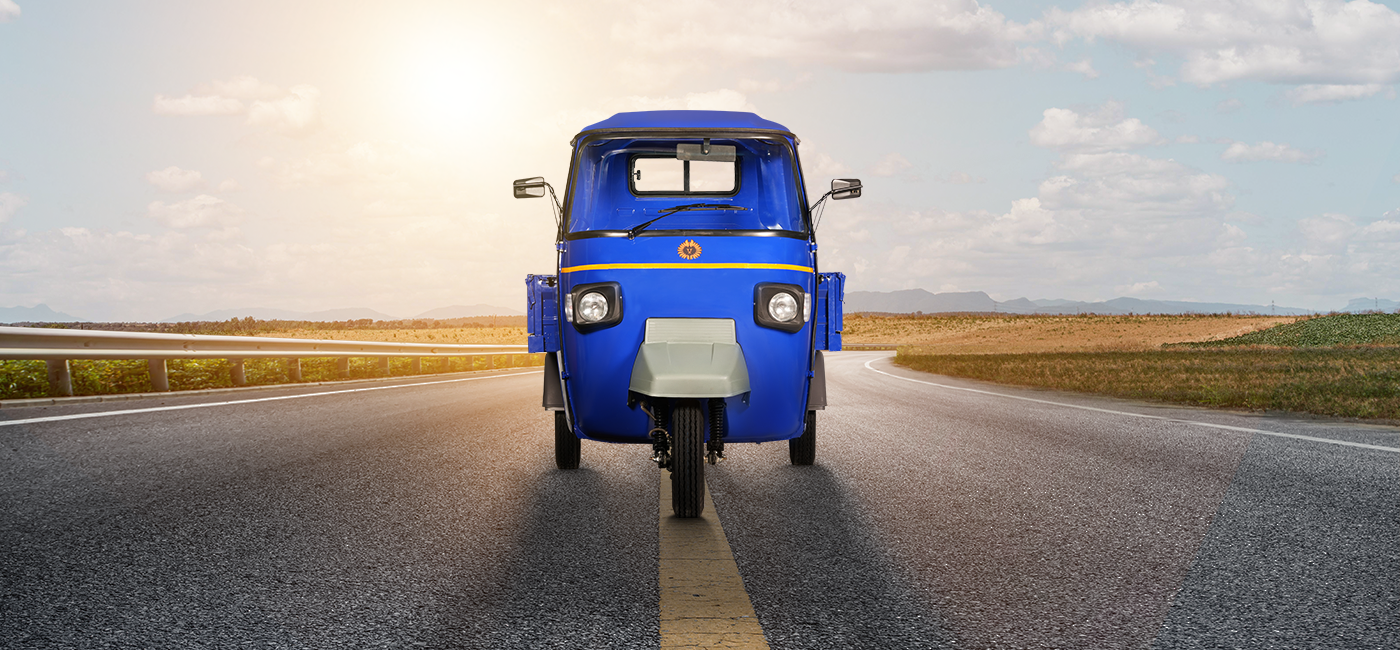

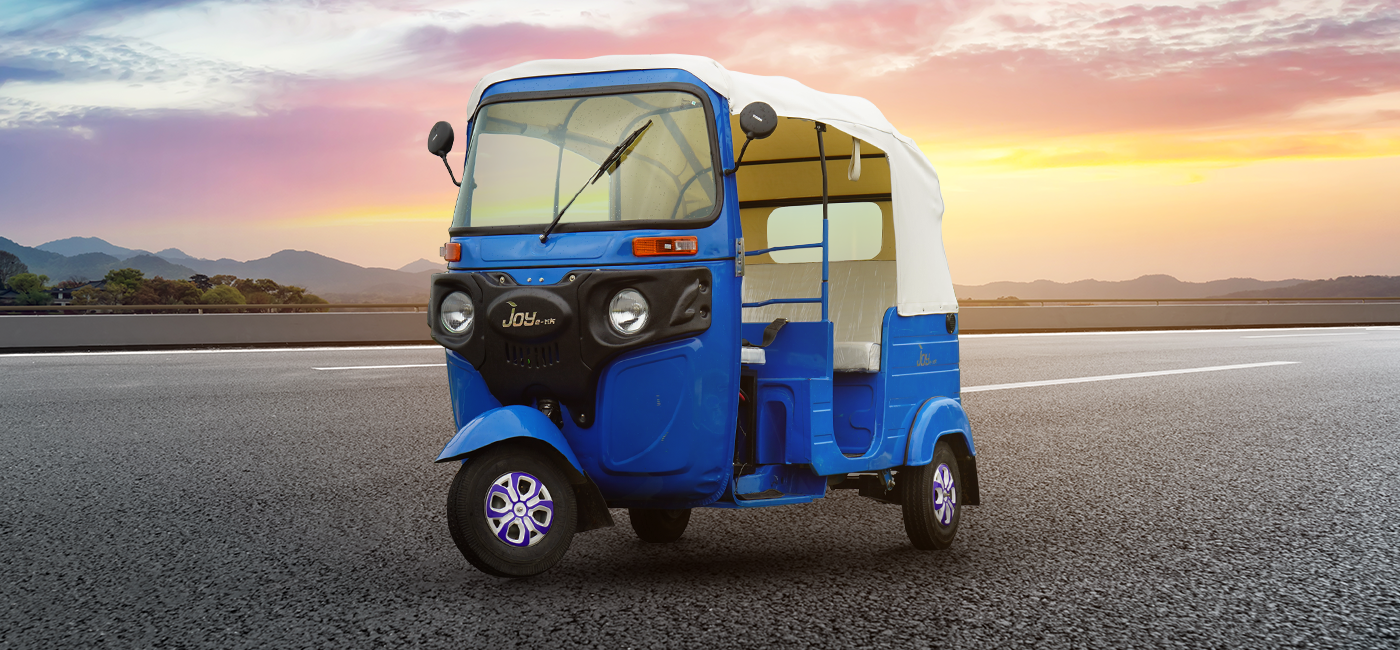

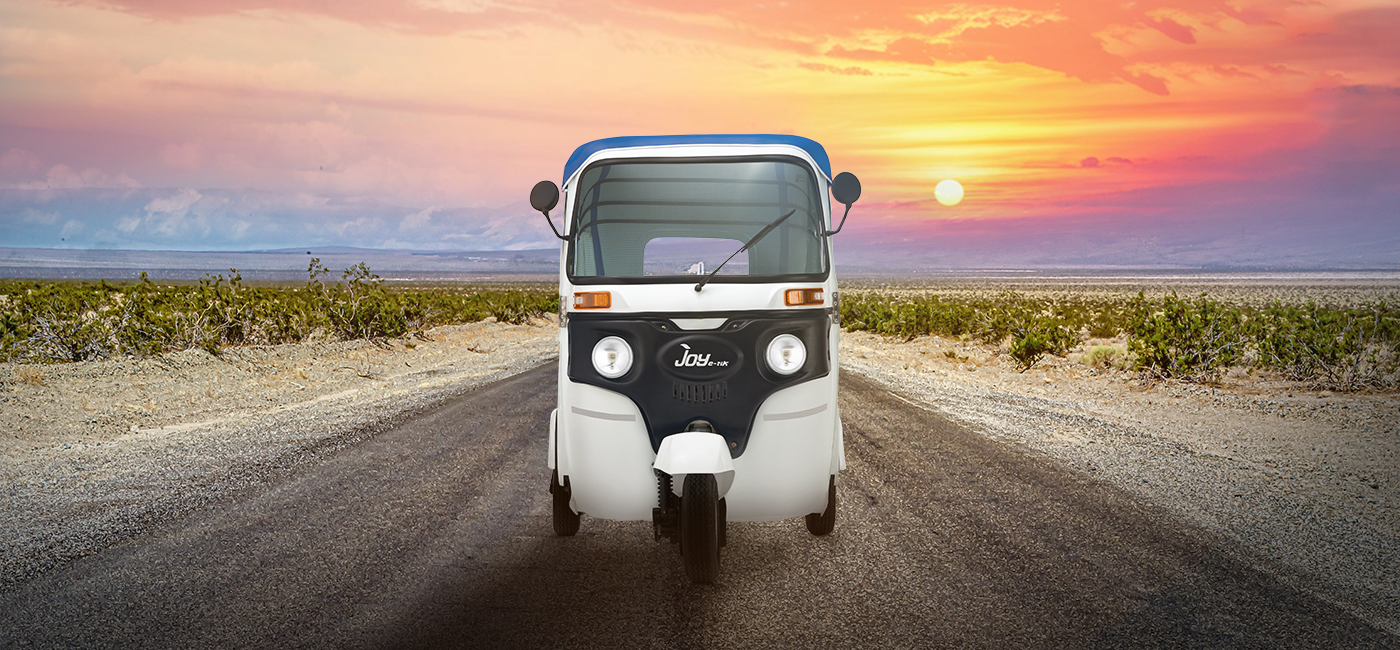

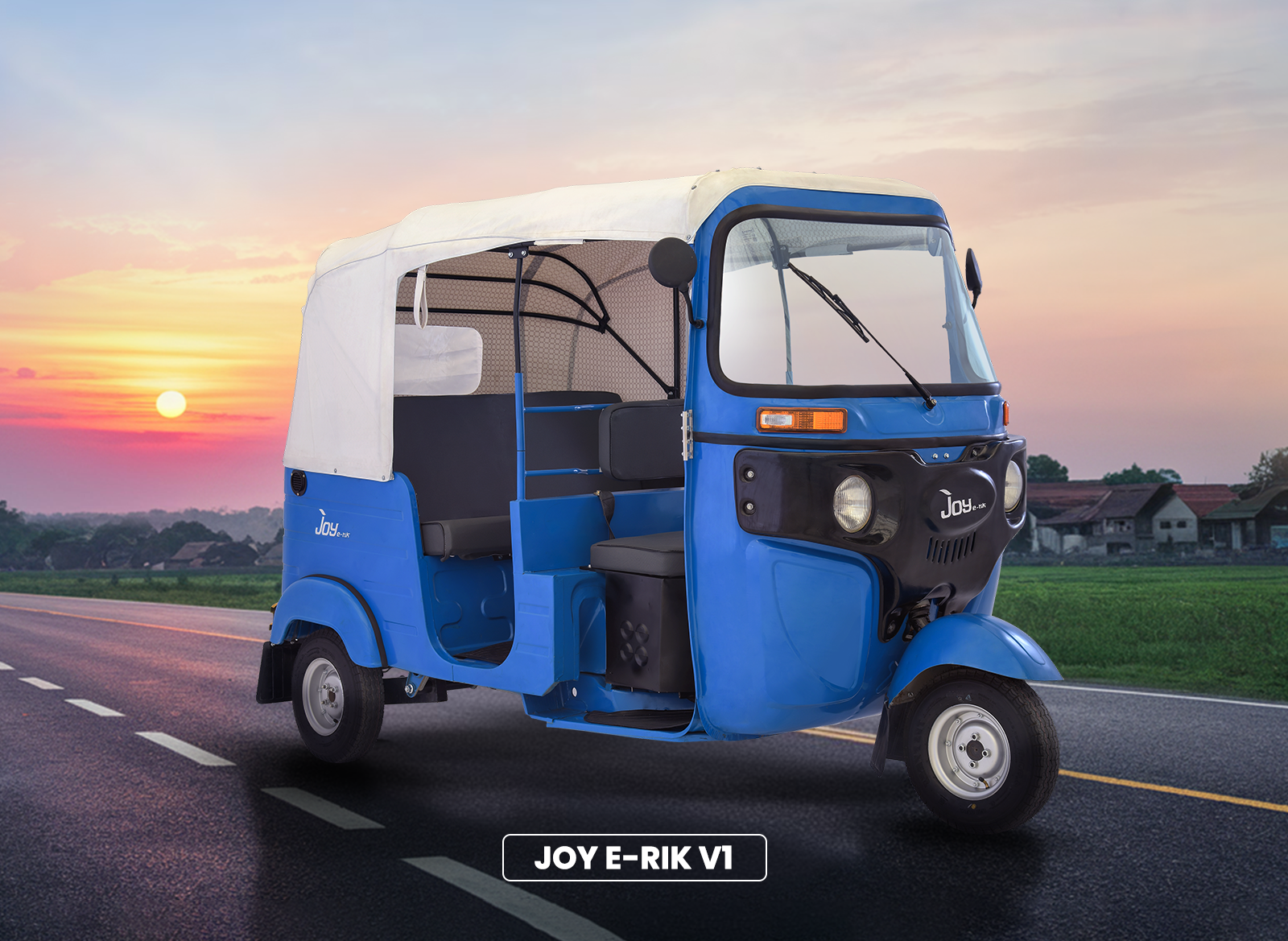

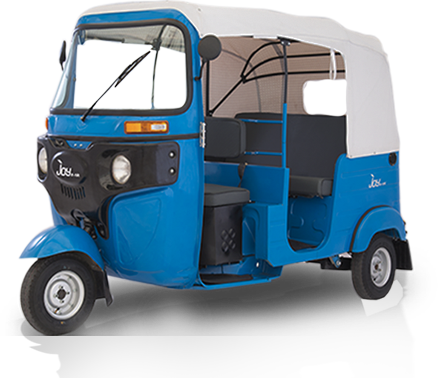

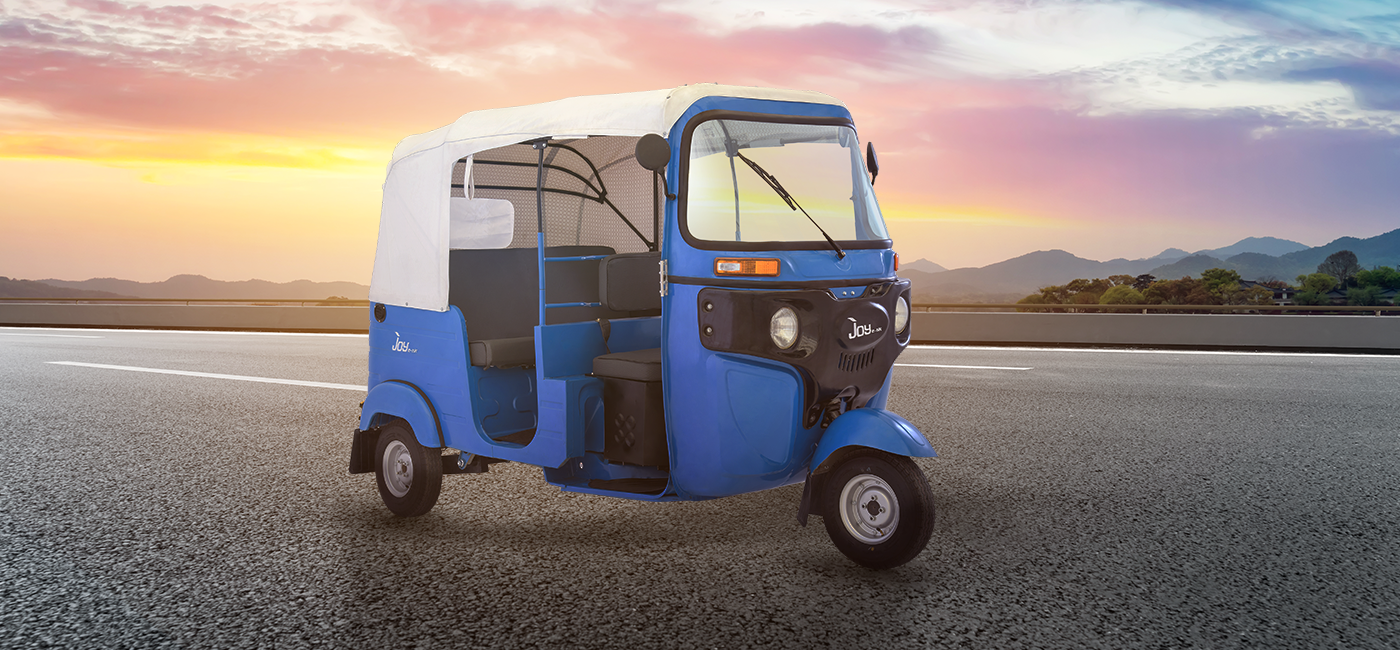

The latest addition to the sustainable modes of transportation Joy e-rik is a Lithium Ion battery-powered, 3-wheel electric vehicle brought to revolutionize the Indian roads by Wardwizard Innovations & Mobility Limited. Welcome Joy into your commute. Welcome, Joy e-rik.

main feature

Smart Cluster

Android powered digital cluster with 5 inch smart display. Real time battery temp, speedometer, trip range, call notifications, turn-to-turn navigation.

IoT Smart Features

Built-in smart assistance in vehicle for better performance. Remote ignition, battery analysis, trip analysis, Geo-fence.

IP 67 Rated Battery Pack

ARAI standard battery pack with anti-dust, water-proof, vibration-withstanding abilities.

Robust Structure

Higher strength in chassis & other body parts.

Drum Break Front & Rear

A combined braking system for a safer speed control.

Regenerative Braking

Helps you save more battery charge on a trip

technical specification

Vehicle Dimension

  • Overall Length 274Omm
  • Overall Width 1300 mm
  • Overall Height 171O mm
  • Ground Clearance 140 mm
  • Wheel Base 2030 mm
  • Warranty on Battery 36 months
  • Turning Radius 276O mm
  • Vehicle Kerb Weight (width battery) 390 KG
  • Vehicle Gross Weight (GVW) 73O Kg
  • Wheel Size front 4/8 6 PR

Vehicle Category L- 5 M

  • Battery Type LFP Li-ion with CAN Protocol 2.0 B
  • Vehicle Body MS
  • Pay Load 340 KG

Performance

  • Max Speed 45 Kmph
  • Range Per Charge 85 - 90 Kms” (Without Load)
  • Gradeablity 7“degree

Battery

  • No of Battery Single (6.4 Kw )
  • Battery Voltage 64 V
  • Battery Capacity 100 Ah
  • Battery DOD 90%
  • Standard Charging Time 3.5 - 4Hours @30 Amp
  • Fast Charging Time 2.5 Hours @ 40 Amp

Warranty

  • Warranty on Battery 36 months
  • Warranty on Product 12 Months

Drive Train

  • Motor Rating 60 V
  • Rated Power 4Kw
  • Peak Power 6.8 Kw
  • Rated Torque 17 nm
  • Motor Type PMSM/AC synchronization
  • Controller Type PMSM/CAN
  • Controller Voltage 6O - 72 V
  • Controller Power Rating 4.0 Kw
  • Charger - Off Board 3O Amp
  • System Voltage 64 V
  • Transmission Type W/O Gear

Suspension & Brakes

  • Front Brake / Rear Brake Drum Brake (Hydraulically Actuated)
  • Suspension Front Helical Spring with Dampener
  • Suspension Rear Rubber spring with Dampener

GPS

  • Vehicle Features Optional

Vehicle Features

  • Modes F/R
  • Parking Brake Yes
  • Fire Extinguisher Yes
  • USB Port Yes
  • Stepney Yes
  • Reverse Buzzer Yes
  • Cluster / Speedometer Digital
  • Hazard Indicator Yes
  • 12 v Socket Yes For FM
  • Seating Capacity Driver + 3
  • Battery Charger Standard ( 30 Amp )
  • Colour Blue    White   Yellow
